LOL-WET-0317

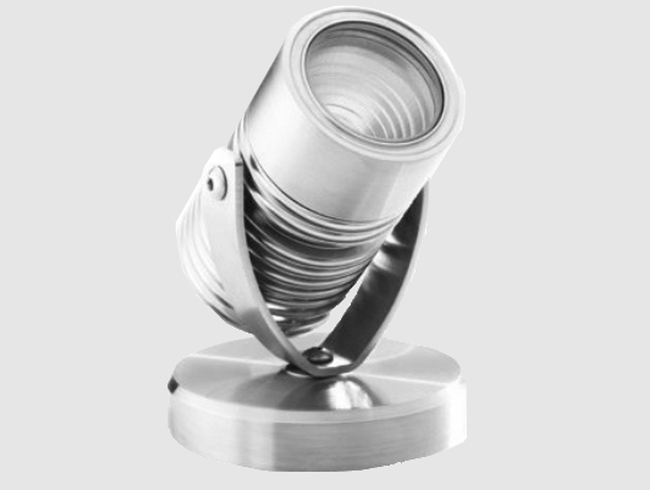

Pond Light on Bracket

Suitable For: Exterior

The LOL-WET-0317 is a high quality and practical luminaire with contemporary styling. Weighted base option available.

IP 68 Joining Kit IP68

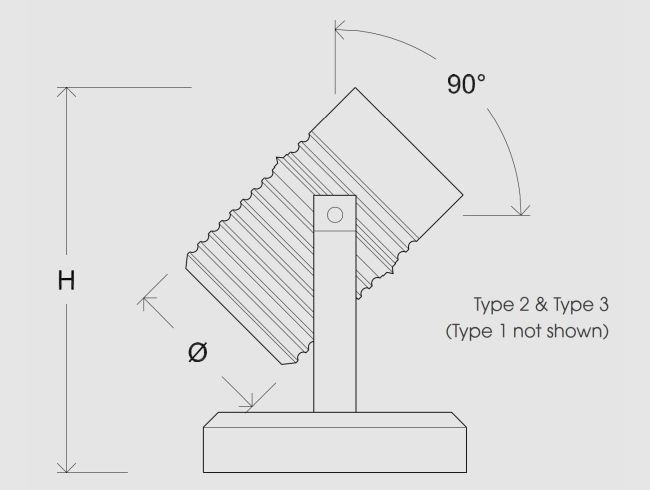

Dimensions

  • Type 1

    31Ø x 77H

  • Types 2 & 3

    41Ø x 102H

Power Input

    *Type 1: 350mA - driver inline, Types 2&3: 700mA integral driver

Power usage

    1W Type 1, 2W Type 2, 4W Type 3

Beam Angles

    26, 36 or 74 (Type 2 & 3) 15, 30 or 53 (Type 1)

Colour Temperature

    2700k, 3000k

Lumen

    80-90 lm/W

CRI

    90+

Finish type

  • Natural Copper
  • 316 Stainless Steel
  • Anodised Black Aluminium

Lamp details

  • Lamp LED Module

Important notes

*Type 1 - inline 12VAC driver, Types 2&3 - integral driver 12VAC inline. Connect remote driver versions in series. Connect integral driver versions in parallel. 12V AC (Integral) or 24 V DC (Integral) options for all types

General Notes & Installation

Note: All dimensions and other specifications can change without notice. Please contact Light on Landscape to confirm the availability and current specifications of this luminaire.

Installation: We recommend that all installed lights and joins can always be accessed, inspected and removed. Failure to do so could result in the voiding of the manufacturer's warranty. We advise that all joins be soldered, and cable sealed with heat shrink. Fixtures cannot be pressure cleaned.

Mounting

Surface Mount
