LOL-PAT-0456

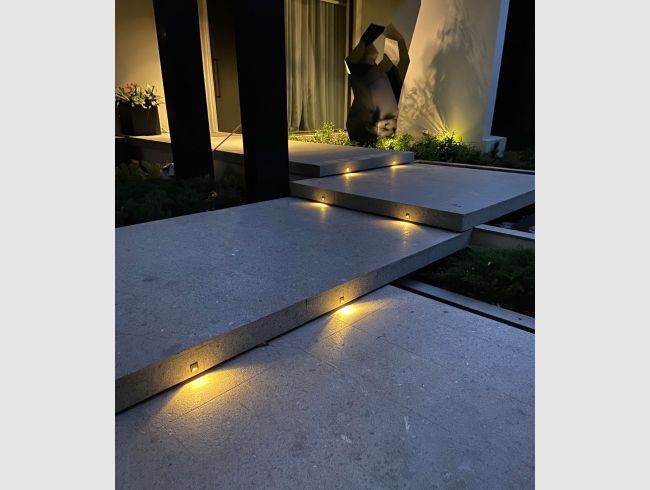

Mini Step / Wall Wash Light

Suitable For: Exterior Interior

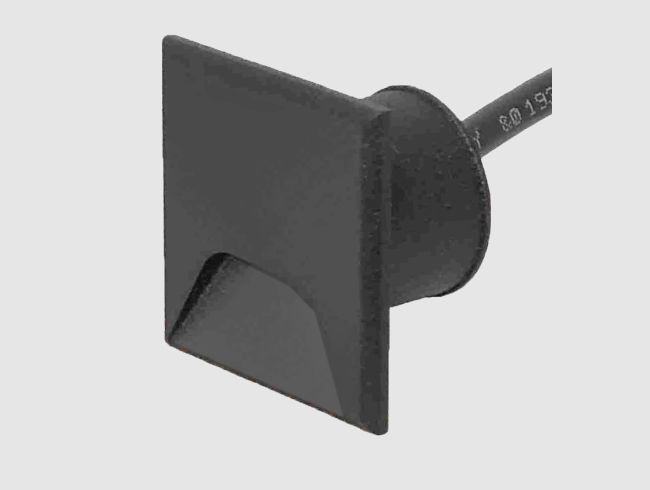

The LOL-PAT-0456 is a single emission step or wall light. The body is made from brass but the overall small size of this luminaire makes it a featherweight light option that punches well above it’s class. It is suitable for mounting on plasterboard, masonry, stone and rendered surfaces.

Reduced Glare Low Profile IP 68 Joining Kit IP66

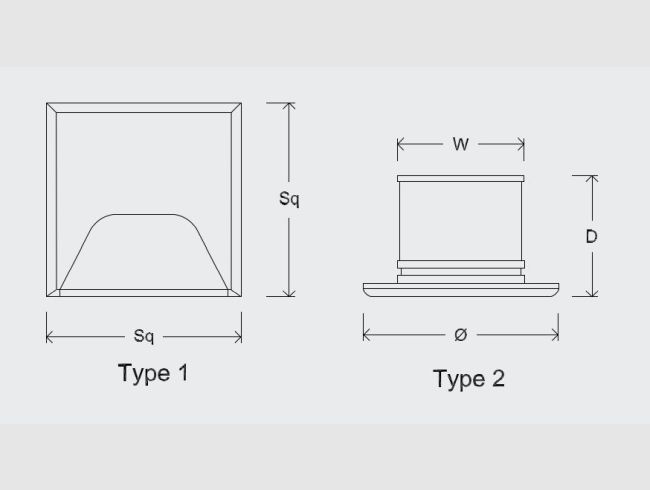

Dimensions

  • Type 1

    40Sq x 40Sq x 26D

  • Type 2

    40Ø x 26W x 26D

Power Input

    350mA - Series Wired

Power usage

    1W

Beam Angles

    Diffuse

Colour Temperature

    3000k

Lumen

    21 lm

CRI

    80+

Finish type

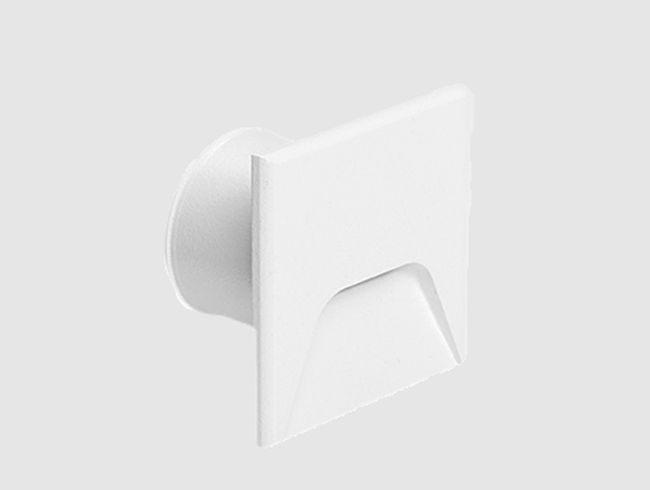

  • RAL Black or White Powdercoat

Lamp details

  • Lamp LED Module

Important notes

*Drill 29mm DIA hole for plasterboard and use canister. 12V AC conversion option available.

General Notes & Installation

Note: All dimensions and other specifications can change without notice. Please contact Light on Landscape to confirm the availability and current specifications of this luminaire.

Installation: We recommend that all installed lights and joins can always be accessed, inspected and removed. Failure to do so could result in the voiding of the manufacturer's warranty. We advise that all joins be soldered, and cable sealed with heat shrink. Fixtures cannot be pressure cleaned.

Mounting

Surface mount or optional canister for concrete or masonary*
