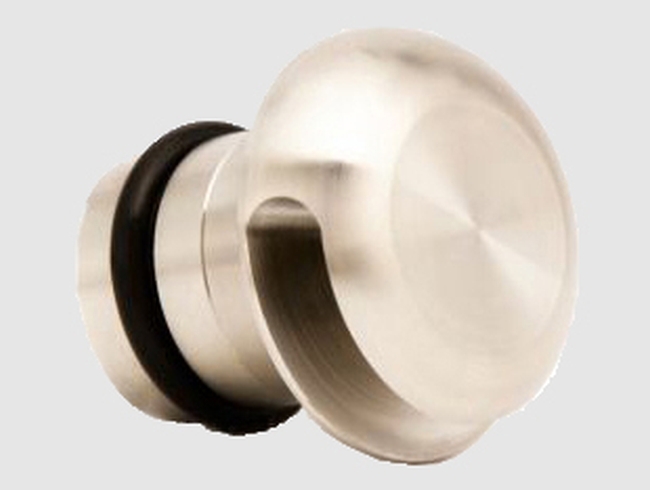

LOL-PAT-0422

Compact Step and Wall Washer

Suitable For: Exterior Interior

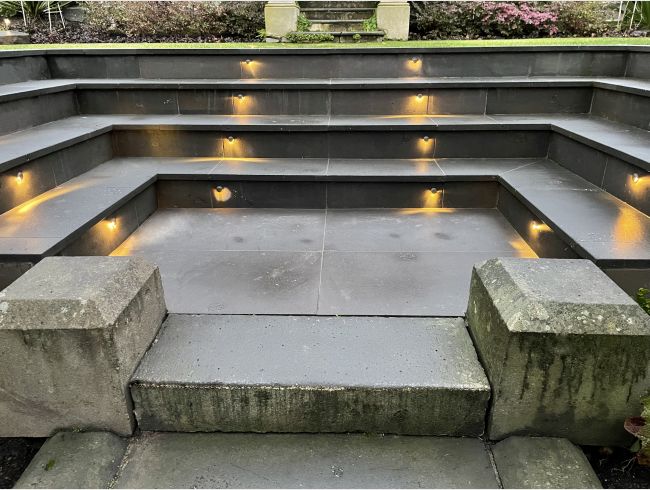

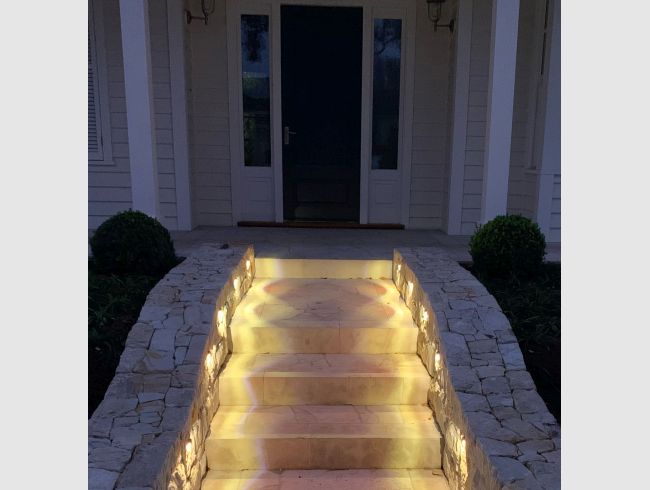

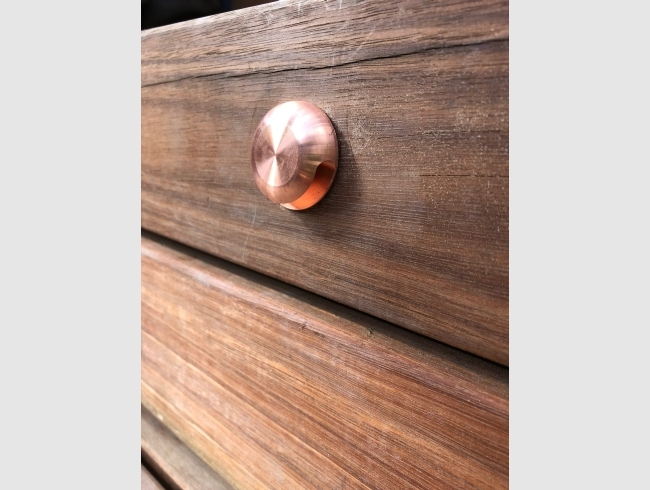

The LOL-PAT-0422 recessed path light is designed to be mounted in walls or fences to illuminate paths and stairways. This luminaire is extremely tough durable and waterproof making it ideal for installation in public spaces large-scale projects and or residential areas.

IP 68 Joining Kit IP68

Dimensions

  • Type 1 & 2

    32Ø x 31H

Power Input

    350mA

Power usage

    1W

Beam Angles

    180, 360

Colour Temperature

    2700k

Lumen

    70 lm

CRI

    90+

Finish type

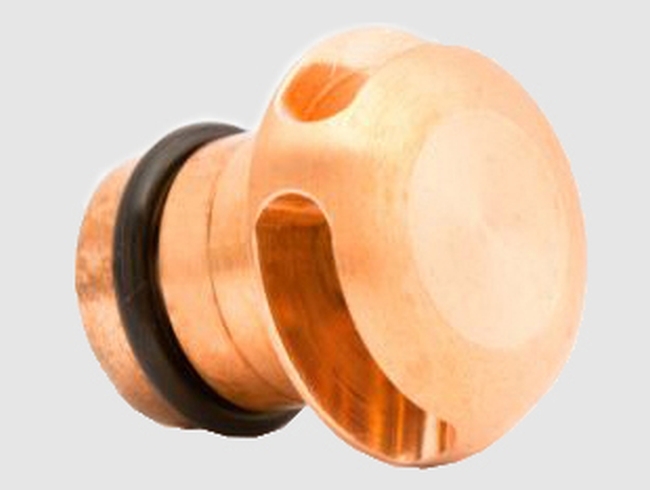

  • Copper
  • Stainless Steel

Lamp details

  • Lamp LED Module

Important notes

20Ø cutout required.Type 1 - 180 degrees -single light slot. Type 2 - 360 degrees - 3 light slotsOther colour temperatures available on request

General Notes & Installation

Note: All dimensions and other specifications can change without notice. Please contact Light on Landscape to confirm the availability and current specifications of this luminaire.

Installation: We recommend that all installed lights and joins can always be accessed, inspected and removed. Failure to do so could result in the voiding of the manufacturer's warranty. We advise that all joins be soldered, and cable sealed with heat shrink. Fixtures cannot be pressure cleaned.

Mounting

Recessed
