LOL-PAT-0343

Eclipse Step Light

Suitable For: Exterior

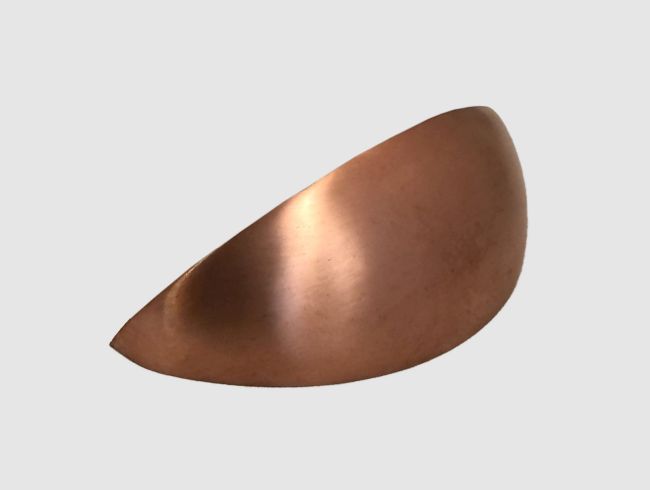

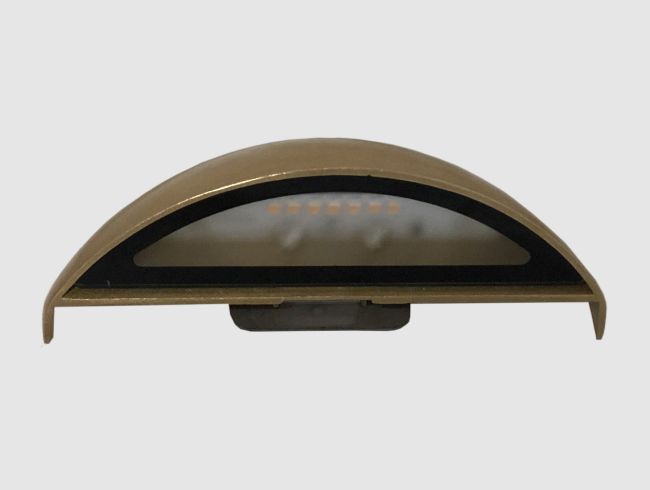

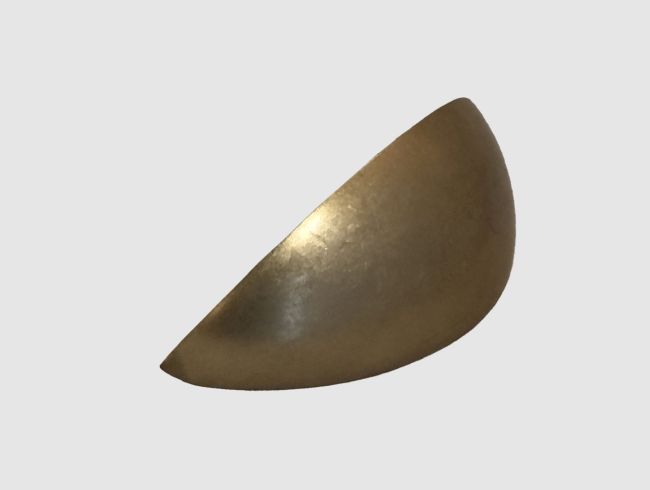

This intriguing step light is contructed from solid cast brass which ages well. The LED modules are rebated to ensure no glare but angled to achieve a forward thow more light onto stair treads or paths and less onto the wall.

Reduced Glare IP 68 Joining Kit IP65

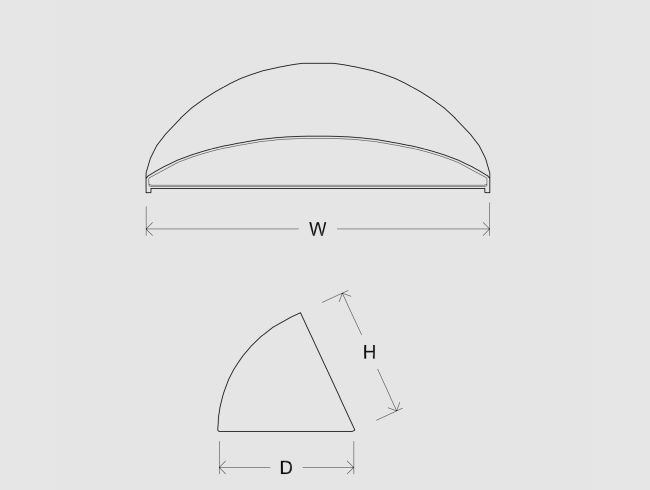

Dimensions

  • 129W x 48H x 43D

Power Input

    24V DC

Power usage

    4W

Beam Angles

    Diffuse

Colour Temperature

    3000k

Lumen

    400 lm

CRI

    80+

Dimming system

  • 3 wire or 2 wire (must specify)

Finish type

  • Natural Brass
  • Brushed Silver Brass
  • Copper Brass
  • Black Brass

Lamp details

  • Lamp LED Module

General Notes & Installation

Note: All dimensions and other specifications can change without notice. Please contact Light on Landscape to confirm the availability and current specifications of this luminaire.

Installation: We recommend that all installed lights and joins can always be accessed, inspected and removed. Failure to do so could result in the voiding of the manufacturer's warranty. We advise that all joins be soldered, and cable sealed with heat shrink. Fixtures cannot be pressure cleaned.

Mounting

Surface mount, concealed fixing
