LOL-PAT-0319

Mini Path Light

Suitable For: Exterior

The LOL-PAT-0319 is a high quality and discrete miniature luminaire with contemporary styling. The LED module is replaceable.

IP 68 Joining Kit IP68

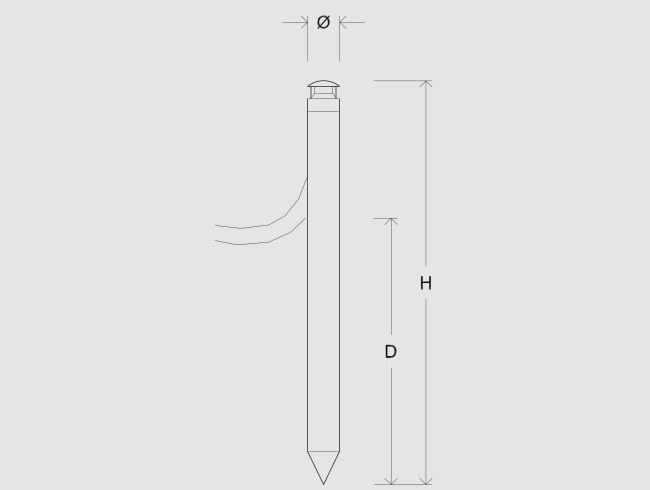

Dimensions

  • Type 1

    160H x 103D x 15Ø

  • Type 2

    300H x 240D x 15Ø

Power Input

    350mA - Series Wired

Power usage

    1W

Beam Angles

    180, 360

Colour Temperature

    2700k, 3000k, 4000k, Other colours

Lumen

    70 lm

CRI

    90+

Finish type

  • Natural Copper
  • 316 Stainless Steel

Lamp details

  • Lamp LED Module

Important notes

Please note that the 12V AC 24 V DC option comes with a in-line integral driver. Please call to confirm availability of other inputs at time of ordering.

General Notes & Installation

Note: All dimensions and other specifications can change without notice. Please contact Light on Landscape to confirm the availability and current specifications of this luminaire.

Installation: We recommend that all installed lights and joins can always be accessed, inspected and removed. Failure to do so could result in the voiding of the manufacturer's warranty. We advise that all joins be soldered, and cable sealed with heat shrink. Fixtures cannot be pressure cleaned.

Mounting

Spike mounted
