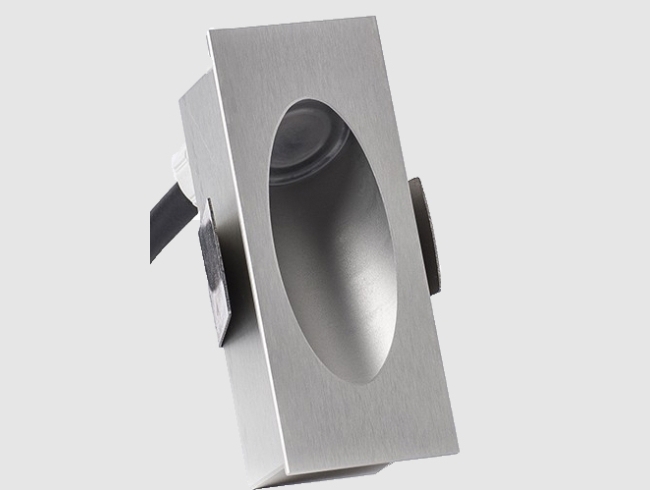

LOL-PAT-0318
Recessed Path or Step Light
Suitable For: Exterior Interior
The LOL-PAT-0318 is a high quality and practical luminaire with contemporary styling. It is a small low-voltage dimmable outdoor light. Designed for recessing low down into walls to project an asymmetrical wash of downlight across paths and steps it combines an ultra discreet profile with zero glare.
Dimensions
30W x 75H x 29D
Power Input
- 12V AC, Remote driver, 350mA Series
Power usage
- 1W
Beam Angles
- Assymetric Wash
Colour Temperature
- Warm White
Lumen
- 55 lm
Dimming system
- 0-10 Volt
- DALI Interface
Finish type
- Anodised Aluminium
- Various Matte Powdercoat Colours
Lamp details
- Lamp LED Module
Important notes
* efficacy 55Lm/W. Other color temperatures available ** or 500mA Maximum Connect remote driver versions in series. Connect integral driver versions in parallel. *** Canister option recommended. Contact Light on Landscape for installation instructionGeneral Notes & Installation
Note: All dimensions and other specifications can change without notice. Please contact Light on Landscape to confirm the availability and current specifications of this luminaire.
Installation: We recommend that all installed lights and joins can always be accessed, inspected and removed. Failure to do so could result in the voiding of the manufacturer's warranty. We advise that all joins be soldered, and cable sealed with heat shrink. Fixtures cannot be pressure cleaned.
