LOL-PAT-0314

Modular Step or Path Light

Suitable For: Exterior

The LOL-PAT-0314 is a high quality and practical luminaire with contemporary styling.

Reduced Glare Low Profile IP 68 Joining Kit IP68

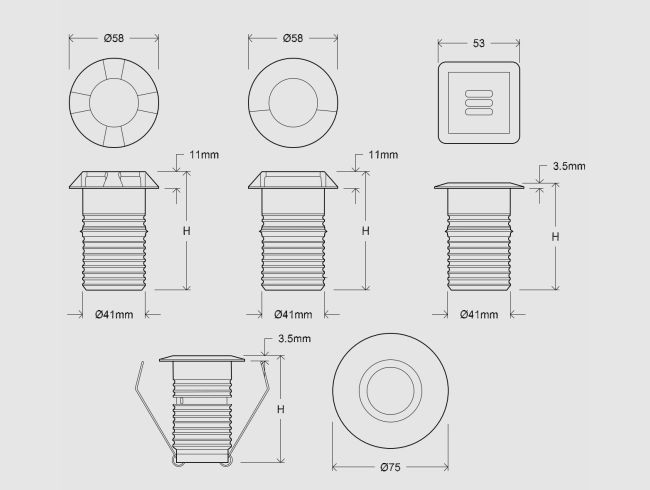

Dimensions

  • Type 1

    58 Ø x 75LType 2

  • Type 5

    58Ø x 74L

Power Input

    12V AC

Power usage

    2 - 4W

Beam Angles

    26, 36, 74

Colour Temperature

    3000k

Lumen

    170 -400 lm

CRI

    85+

Dimming system

  • 0-10 Volt
  • DALI

Finish type

  • Natural Copper
  • 316 Stainless Steel
  • Black Anodised Aluminium

Lamp details

  • Lamp LED Module

Important notes

*Other color temperatures available **hex cell baffle available***TIR -5 DEGREES + 10 DEGREES

General Notes & Installation

Note: All dimensions and other specifications can change without notice. Please contact Light on Landscape to confirm the availability and current specifications of this luminaire.

Installation: We recommend that all installed lights and joins can always be accessed, inspected and removed. Failure to do so could result in the voiding of the manufacturer's warranty. We advise that all joins be soldered, and cable sealed with heat shrink. Fixtures cannot be pressure cleaned.

Mounting

Recessed (PVC cannister)
