LOL-PAT-0241

Rectangle or Round Step Light

Suitable For: Exterior Interior

Die cast aluminium housing (copper free) with high corrosion resistance. Toughened glass diffuser and silicone gaskets.

Reduced Glare IP65

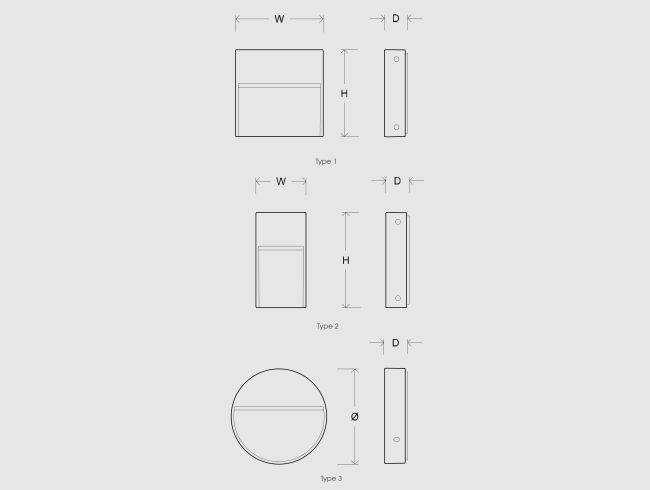

Dimensions

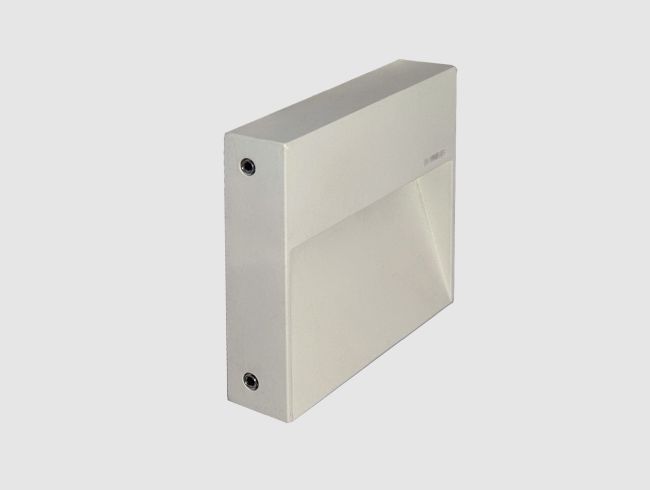

  • Type 1

    105H x 105W x 28D

  • Type 2

    115H x 60W x 28D

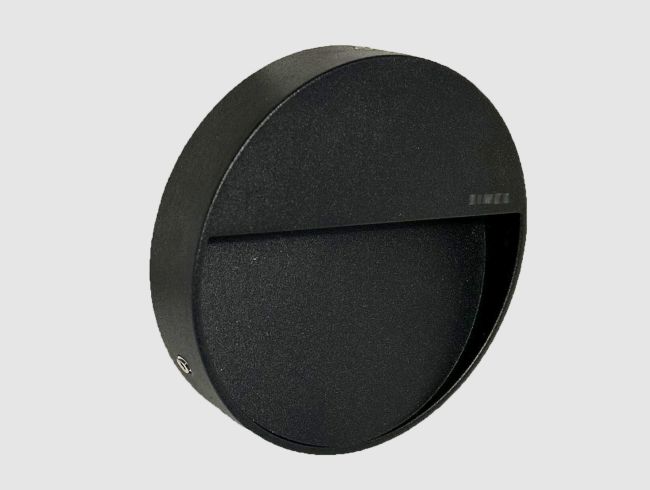

  • Type 3

    115Ø x 28D

Power Input

    24V DC

Power usage

    5W

Colour Temperature

    2700k, 3000k

Finish type

  • Grey
  • Black
  • White
  • Powdercoat Aluminium

CRI

    90+

Dimming system

  • Call to discuss

Lumen

    160 lm, 169 lm

Lamp details

  • Lamp LED Module

Important notes

* transformer required ** suitable for marine conditions

General Notes & Installation

Note: All dimensions and other specifications can change without notice. Please contact Light on Landscape to confirm the availability and current specifications of this luminaire.

Installation: We recommend that all installed lights and joins can always be accessed, inspected and removed. Failure to do so could result in the voiding of the manufacturer's warranty. We advise that all joins be soldered, and cable sealed with heat shrink. Fixtures cannot be pressure cleaned.

Mounting

Surface Mount with Stainless Steel Screws
