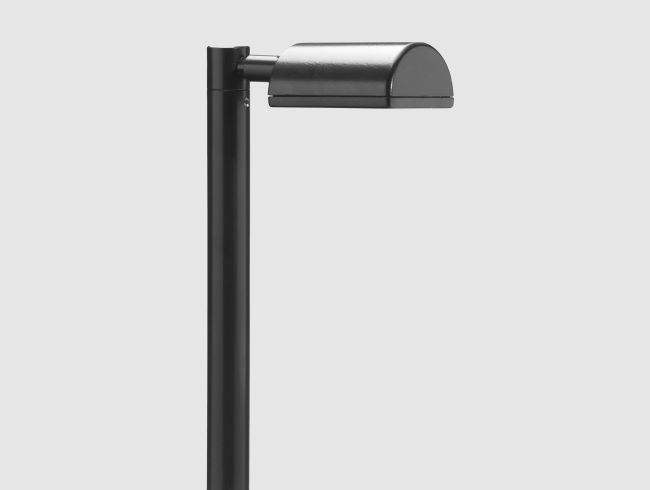

LOL-PAT-0058

Single or Double Path Light

Application: Path

The LOL-PAT-0058 is ideal for path lighting giving a wide spread of light with no upward projection. This luminaire has a fully adjustable arm allowing 360 degree rotation and 0 – 90 degree elevation. The double version (Type 2) is useful if features next to the path need to be illuminated at the same time.

IP54

Dimensions

  • Type 1

    170L x 800H
  • Type 2

    302L x 800H

Power Input

    12V

Lamp details

  • Lamp Bi- Pin

Power usage

    2W, 4W

Beam Angles

    100

Colour Temperature

    2800k - 3000k

Lumen

    180

CRI

    80+

Finish type

  • Green
  • Silver Powdercoat
  • Bronze
  • Black
  • White

Accessories

Surface Mount Flange

Important notes

* Copper or Stainless Steel options are available on application ** Flange available for bolting onto a solid surface

General Notes & Installation

Note: All dimensions and other specifications can change without notice. Please contact Light on Landscape to confirm the availability and current specifications of this luminaire. Installation: Light on Landscape strongly recommend that all luminaires be correctly installed and maintained. Failure to do so will result in the voiding of the manufacturer's warranty and the reduced efficiency, performance and life of the fixture. To eliminate voltage drop, we advise that the recommended UV stabilized cable and run lengths are used, along with soldered joins, heat shrink connectors and quality lamps.

Mounting

Pole mounted directly into earth
