LOL-PAT-0044

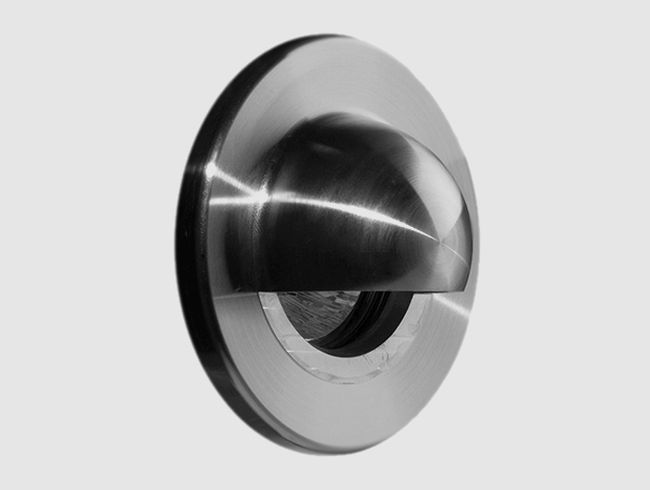

Classic Eyelid Step Light

Suitable For: Exterior

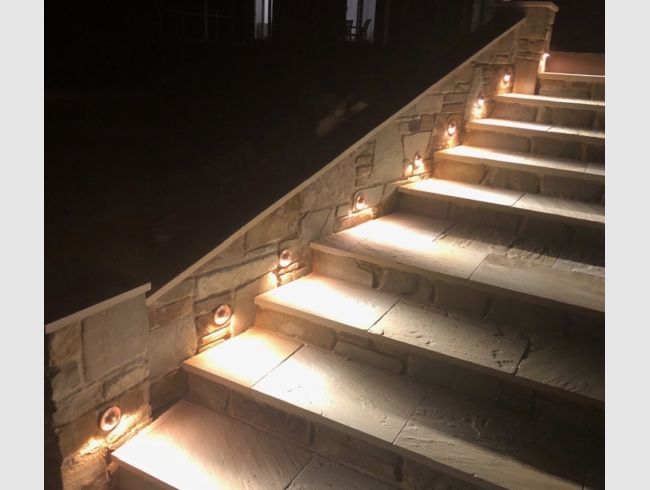

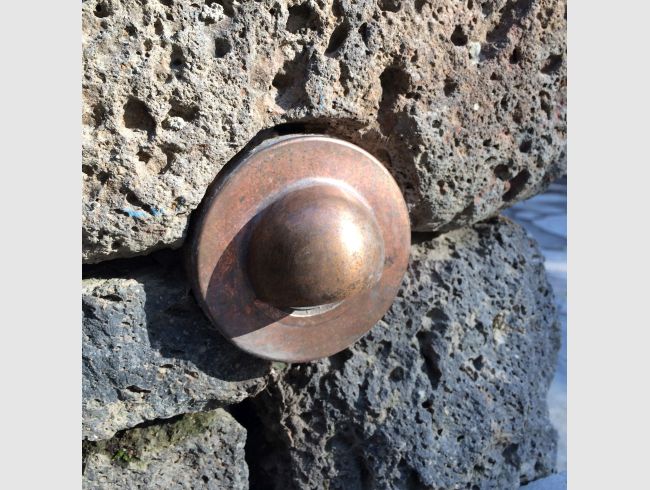

The LOL-PAT-0044 is designed for recessed mounting into masonry, stone or wood, lighting exterior steps, paths and paved areas. The eyelid masks the light source, providing excellent glare-reduced illumination.

IP 68 Joining Kit IP67

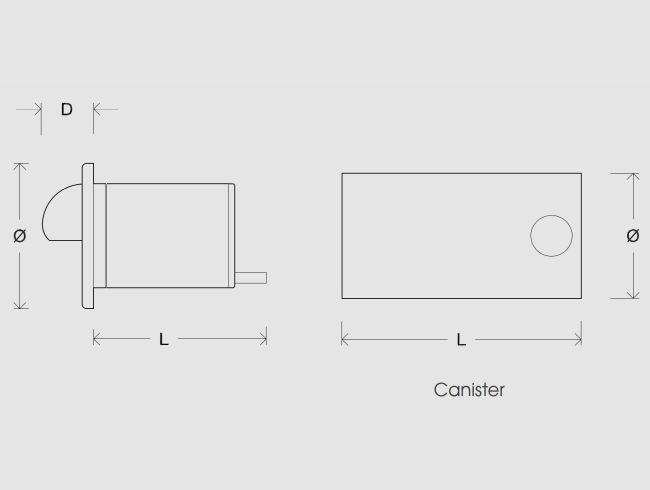

Dimensions

  • Canister

    76Ø x 145L

  • Step light

    88Ø x 93L x 33D

Power Input

    12V, 24V AC/DC

Power usage

    varies with lamp, 3W to 7W

Beam Angles

    varies with lamp, 10 to 120 degrees

Colour Temperature

    varies with lamp, 2700k to 4000k

Lumen

    varies with lamp

CRI

    varies with lamp, 80+ - 90+

Finish type

  • Copper
  • 316 Stainless Steel
  • Bronze
  • White or Black Powdercoat Aluminium

Lamp details

  • Lamp MR16

Important notes

Hex cell louvre for further glare reduction option available

General Notes & Installation

Note: All dimensions and other specifications can change without notice. Please contact Light on Landscape to confirm the availability and current specifications of this luminaire.

Installation: We recommend that all installed lights and joins can always be accessed, inspected and removed. Failure to do so could result in the voiding of the manufacturer's warranty. We advise that all joins be soldered, and cable sealed with heat shrink. Fixtures cannot be pressure cleaned.

Mounting

Recessed with proprietary canister
