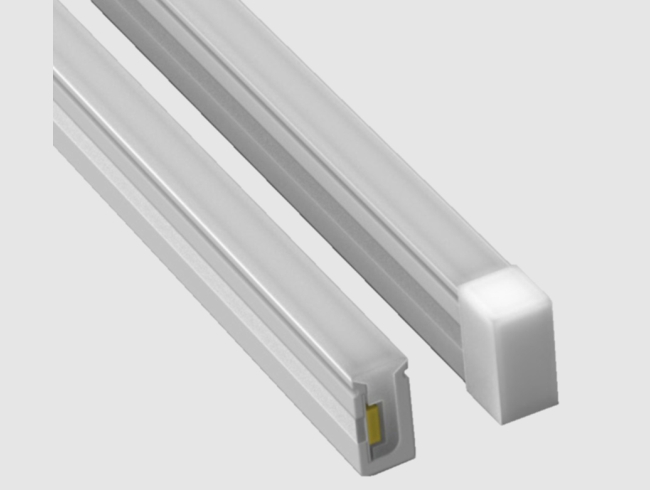

LOL-LIN-1318

Durable 2D top lit linear light

Suitable For: Exterior Interior

The LOL-LIN-1318 is a versatile indoor or outdoor linear LED. The small size, wide range of colour temperatures and lumen outputs etc make this linear the perfect choice for many applications.

IP67

Dimensions

  • Single Input

    6W x 12H x 10000L

  • Double Input

    6W x 12H x 20000L

Power Input

    24V DC

Power usage

    5W, 10W

Beam Angles

    120

Colour Temperature

    2700k, 3000k, 4000k

Lumen

    154-360 lm

CRI

    tbc

Finish type

  • Silicone

Lamp details

  • Lamp LED x 120 per metre

Important notes

*Cut interval = 50mm** Minimum bend radius = 100mm*** Power can be run from either one or both ends.

General Notes & Installation

Note: All dimensions and other specifications can change without notice. Please contact Light on Landscape to confirm the availability and current specifications of this luminaire.

Installation: We recommend that all installed lights and joins can always be accessed, inspected and removed. Failure to do so could result in the voiding of the manufacturer's warranty. We advise that all joins be soldered, and cable sealed with heat shrink. Fixtures cannot be pressure cleaned.

Mounting

Surface mount on uniformly even surface*
