LOL-LIN-1171

Mini LED Bar

Suitable For: Exterior

Modular and compact, the mini LED Bar is a versatile underlighting solution for masonry copings, steps and decks. An optional hood and mounting plate for brickwork installations is also available.

IP 68 Joining Kit Low Profile Reduced Glare

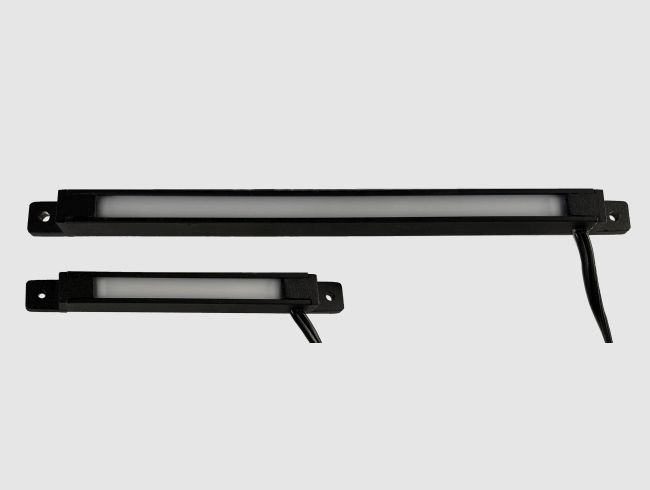

Dimensions

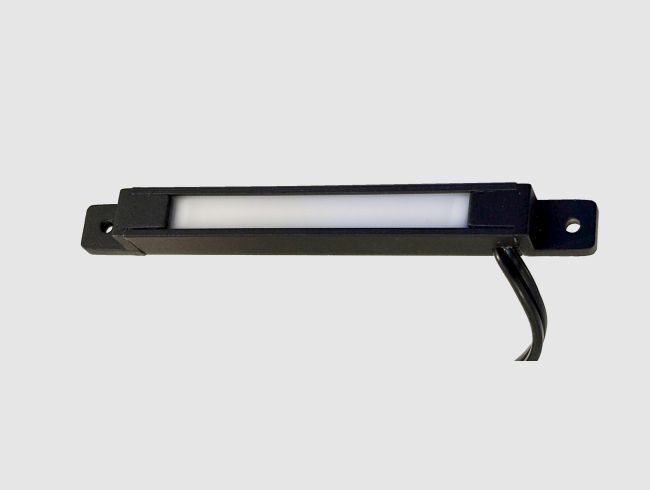

  • Short

    134W x 14H x 15D

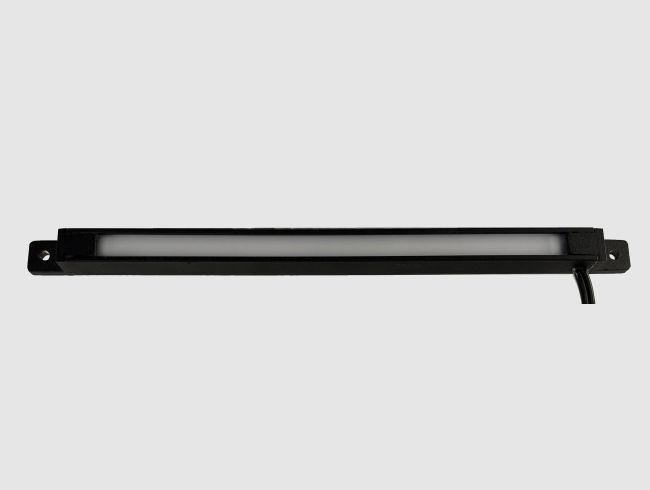

  • Medium

    200W x 14H x 15D

Lamp details

  • Lamp LED Module

Beam Angles

    Diffuse

Colour Temperature

    2700k, 3000k

CRI

    85

Dimming system

  • Call to discuss

Finish type

  • Black

Lumen

    110 lm, 200 lm

Power Input

    12V AC

Power usage

    1.5W, 2.5W

Important notes

Longer (327W) option available

General Notes & Installation

Note: All dimensions and other specifications can change without notice. Please contact Light on Landscape to confirm the availability and current specifications of this luminaire.

Installation: We recommend that all installed lights and joins can always be accessed, inspected and removed. Failure to do so could result in the voiding of the manufacturer's warranty. We advise that all joins be soldered, and cable sealed with heat shrink. Fixtures cannot be pressure cleaned.

Mounting

Surface Mount - screw or brick mounting plate
