LOL-LIN-1081

Outdoor Top LED Strip

Suitable For: Exterior Interior

The LOL-STR-1081 is suitable for soft (Type 1) or well lit (Type 2) LED strip lighting in outdoor and indoor areas.

Reduced Glare Low Profile IP66

Dimensions

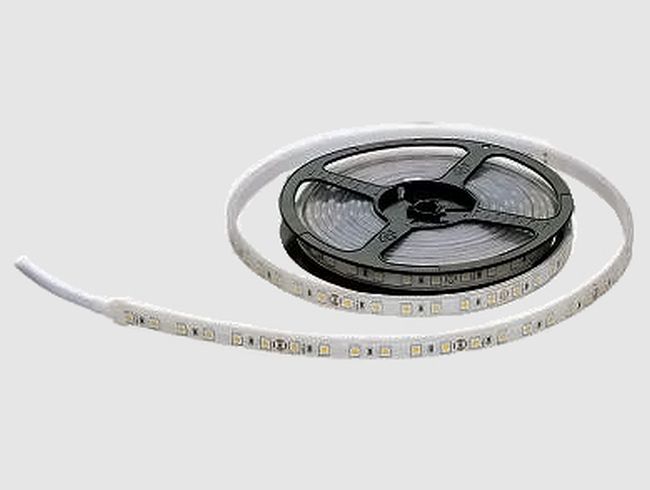

  • LED TapeType 1

    12W x 4.5H x 100L (Øut Length) 5000L (Max)

  • Type 2

    12W x 5H x 100L

  • Type 1

    12W x 5H x 100LProfileLow

  • Standard

    1.27W x 16H x 2000L (Max)

Power Input

    24V DC

Power usage

    Type 1 - 4.8W p/M, Type 2 - 8W p/M

Beam Angles

    Wide Diffuse

Colour Temperature

    3000k

Lumen

    Type 1 - 365 lm p/M, Type 2 950 lm p/M

CRI

    80+

Dimming system

  • DALI - Dimmable
  • 0-10 Volt

Finish type

  • LED Tape - as supplied
  • Diffuser: Black
  • Transparent

Lamp details

  • Lamp Variable x LEDs p/M

General Notes & Installation

Note: All dimensions and other specifications can change without notice. Please contact Light on Landscape to confirm the availability and current specifications of this luminaire.

Installation: We recommend that all installed lights and joins can always be accessed, inspected and removed. Failure to do so could result in the voiding of the manufacturer's warranty. We advise that all joins be soldered, and cable sealed with heat shrink. Fixtures cannot be pressure cleaned.
