LOL-ING-0272

Assymetrical Wash Light

Application: Inground

The LOL-ING-0272 is particularily suited to washing walls and features. It has a unique optic that orients and feathers its asymmetric light output to create the perfect wash and virtually no glare in most installations**.

Reduced Glare Low Profile IP 68 Joining Kit IP68

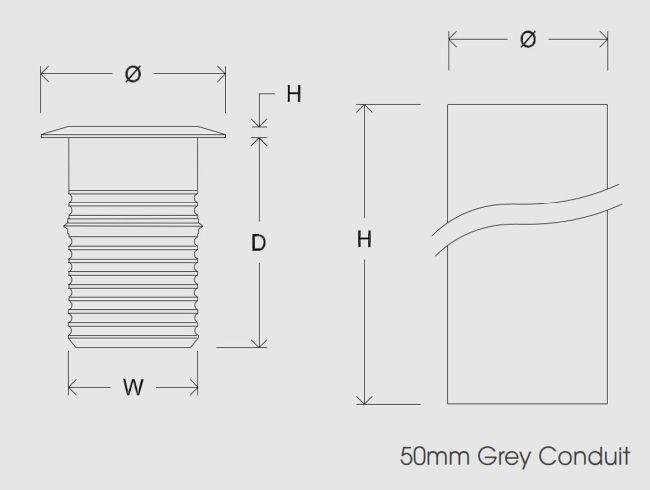

Dimensions

  • Standard

    58Ø x 68H

  • Wide Flange

    75Ø x 73H

  • Grey Conduit

    50Ø x 205H

  • Gel Box

    100L x 36D x 24W

Power Input

    12V AC, 700mA Constant Remote

Lamp details

  • Lamp LED Module

Power usage

    2W

Colour Temperature

    2700k, 3000k

Lumen

    120 lm

CRI

    90+, 80+

Dimming system

  • DALI Interface
  • 0-10 Volt

Finish type

  • Anodised Black Aluminium
  • 316 Stainless Steel
  • Natural Copper

Accessories

Hex Baffle Cell

Important notes

Connect remote driver versions in series. Connect integral driver versions in parallel. * Other colors available cool white, neutral white, red, green, blue and amber.

General Notes & Installation

Note: All dimensions and other specifications can change without notice. Please contact Light on Landscape to confirm the availability and current specifications of this luminaire. Installation: Light on Landscape strongly recommend that all luminaires be correctly installed and maintained. Failure to do so will result in the voiding of the manufacturer's warranty and the reduced efficiency, performance and life of the fixture. To eliminate voltage drop, we advise that the recommended UV stabilized cable and run lengths are used, along with soldered joins, heat shrink connectors and quality lamps.

Mounting

Recessed in conduit
