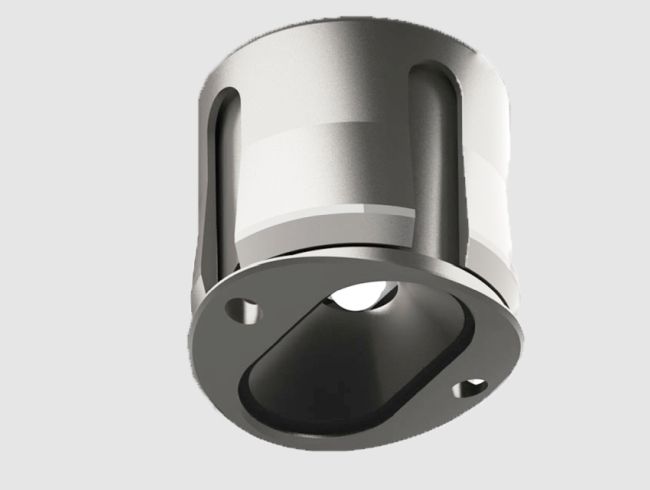

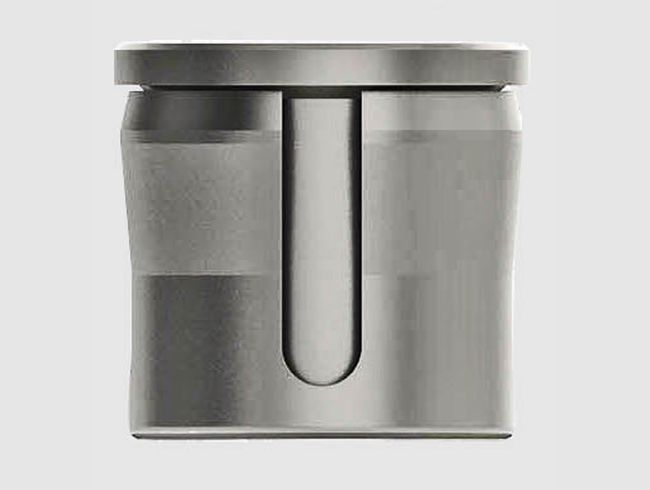

LOL-DOW-0388

Mini Recessed Light

Suitable For: Exterior Interior

The LOL-DOW-0388 is powerful, yet small and unobtrusive, theft and vandal resistant, so it is very suitable for any public or domestic setting.

Low Profile Reduced Glare

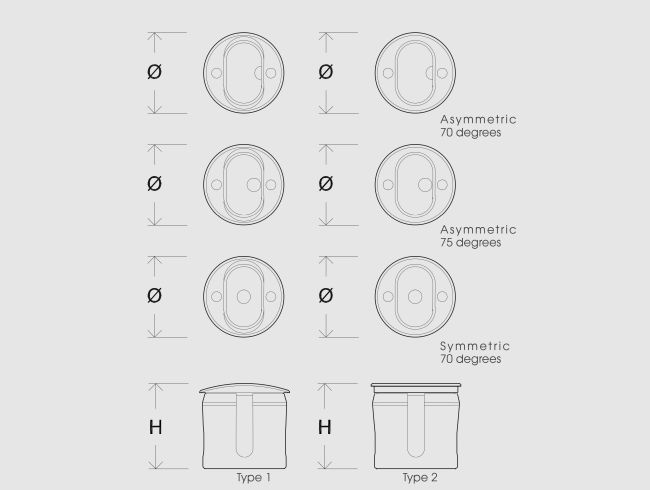

Dimensions

  • Type 1 & 2

    16Ø x 15H

Beam Angles

    70, 75

Colour Temperature

    2700k, 3000k, 4000k

CRI

    80+, 90+

Dimming system

  • 0-10 Volt Available on application

Finish type

  • Electroplated 316 Stainless Steel

Lumen

    101 lm, 130 lm, 206 lm

Power Input

    500mA

Power usage

    1.4W

Lamp details

  • Lamp LED Module

Important notes

*other colours available including RGB ** Beam:70deg - standard, minimal light spill 75deg- vertical asymmetric, 70deg - vertical symmetric, suitable for mid-rails*** IP68 if a borosilicate lens is specified

General Notes & Installation

Note: All dimensions and other specifications can change without notice. Please contact Light on Landscape to confirm the availability and current specifications of this luminaire.

Installation: We recommend that all installed lights and joins can always be accessed, inspected and removed. Failure to do so could result in the voiding of the manufacturer's warranty. We advise that all joins be soldered, and cable sealed with heat shrink. Fixtures cannot be pressure cleaned.

Mounting

Recessed, proprietry installation tool required. 1.5mm minimum wall thickness
