LOL-PAT-1101

Miniature Eyelid Light

Suitable For: Exterior

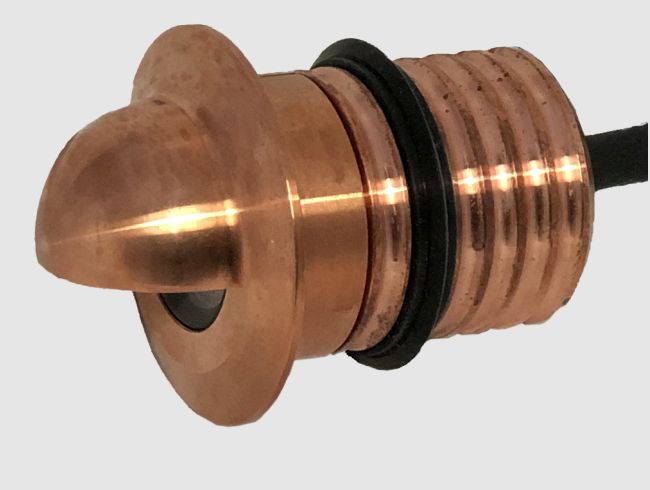

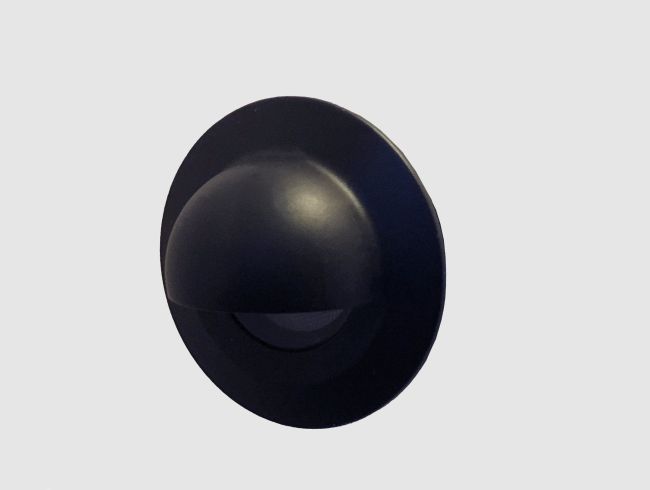

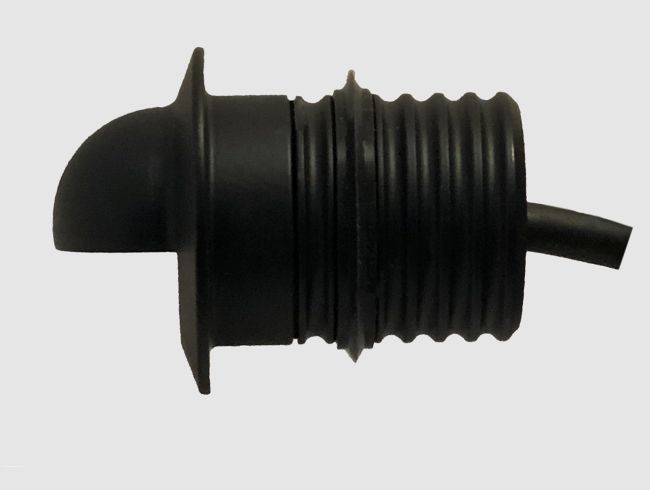

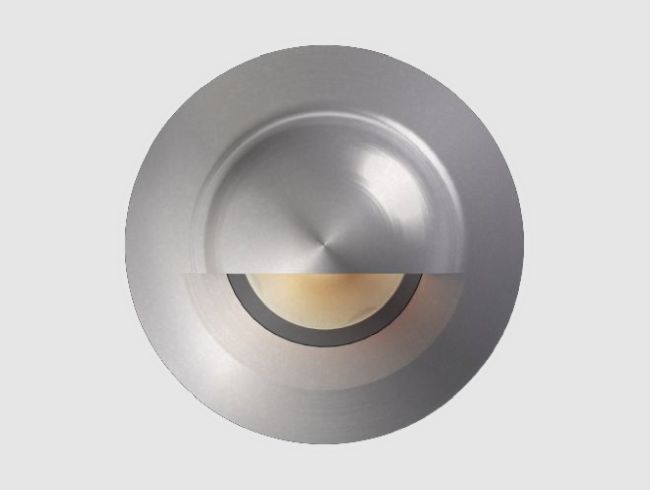

The LOL-PAT-1101 is a classic eyelid step light in a miniature version. With a low glare design and minimal depth profile it is perfect for wherever discreet wall mounted marker lights are required for steps or pathways.

Low Profile IP 68 Joining Kit IP68

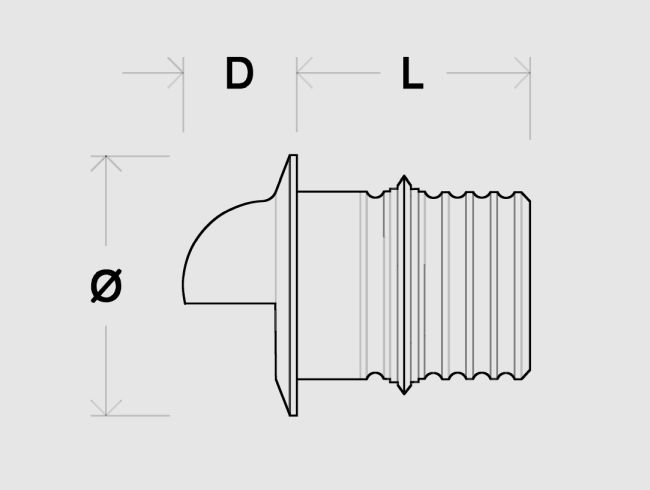

Dimensions

  • 43C x 19D x 39L

Power Input

    350mA - Series Wired

Power usage

    1W

Beam Angles

    Assymetric wash

Colour Temperature

    2700k, 3000k

Lumen

    80 lm (unobstructed)

CRI

    90+

Dimming system

  • DALI - Dimmable

Finish type

  • Copper
  • 316 Stainless Steel
  • Black Powdercoat Aluminium

Lamp details

  • Lamp LED Module

General Notes & Installation

Note: All dimensions and other specifications can change without notice.

Please contact Light on Landscape to confirm the availability and current specifications of this luminaire.

Mounting

Recessed with canister for concrete or masonry
