LOL-PAT-1010

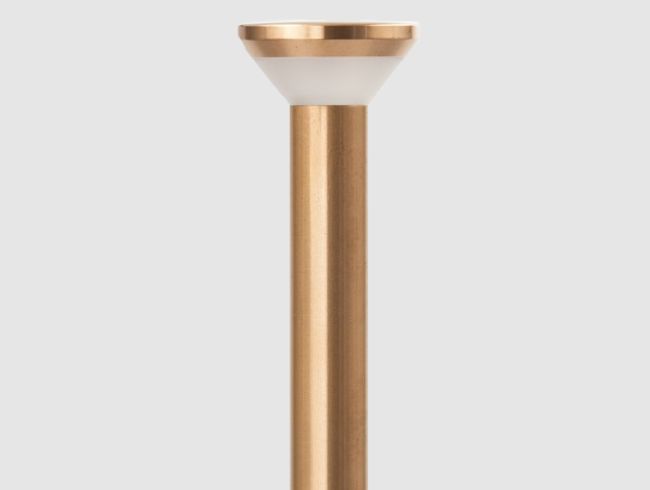

360 Degrees Path Light

Application: Path

The LOL-PAT-1010 was developed to meet the challenge of delivering high quality practical lighting with maximum energy efficiency and a long maintenance-free life. This luminaire is extremely tough durable and waterproof. This makes it ideal for installation in public spaces or large-scale projects and residential areas.

Reduced Glare IP68

Dimensions

  • 63C x 700H x 215D

Power Input

    12V AC, 350mA - Series Wired

Lamp details

  • Lamp LED Module Replaceable

Power usage

    1W

Beam Angles

    360

Colour Temperature

    2700k, 3000k

Lumen

    28

CRI

    90+

Finish type

  • White Powdercoat
  • Bronze
  • Copper
  • Black
  • 316 Stainless Steel

Accessories

Flange for Surface Mount

Important notes

Other colour temperatures are available. Flange option available for concrete surface mountingCustom length on application.

General Notes & Installation

Note: All dimensions and other specifications can change without notice. Please contact Light on Landscape to confirm the availability and current specifications of this luminaire. Installation: Light on Landscape strongly recommend that all luminaires be correctly installed and maintained. Failure to do so will result in the voiding of the manufacturer's warranty and the reduced efficiency, performance and life of the fixture. To eliminate voltage drop, we advise that the recommended UV stabilized cable and run lengths are used, along with soldered joins, heat shrink connectors and quality lamps.

Mounting

Spike Mount or Surface Option
